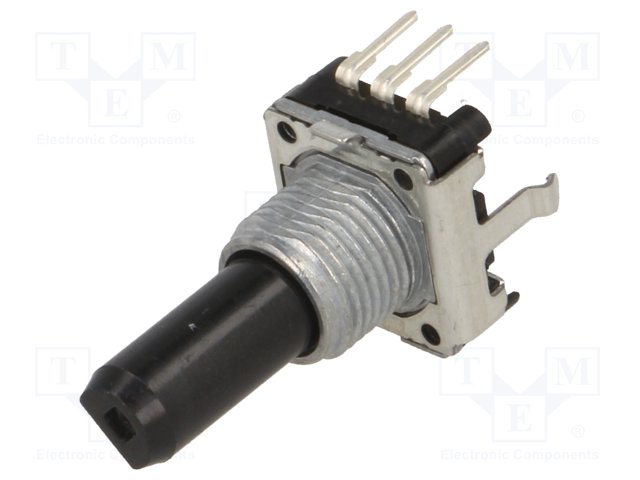

ENCODER EC12E2420801 4451

Name: ENCODER EC12E2420801 4451
SKU: 4451
Availability: InStock

Sifra: 4451
rotacioni enkoder 24 pozicije Alps

Original price was: 273,90 rsd.Current price is: 249,00 rsd.

Na lageru

ID: E78594 SKU: 4451 Kategorija: ENKODERI

Opis artikla

Opis artikla

Manufacturer ALPS Type of encoder incremental Resolution 24imp/revol. Output signal two phase A and B Operating current max. 5mA Shaft surface D spring Shaft length 12mm Operating voltage 5V DC Shaft diameter 6mm Number of all positions 24 Cut depth 1.5mm
